Dometic RV Thermostat Replacement - in 15 minutes.

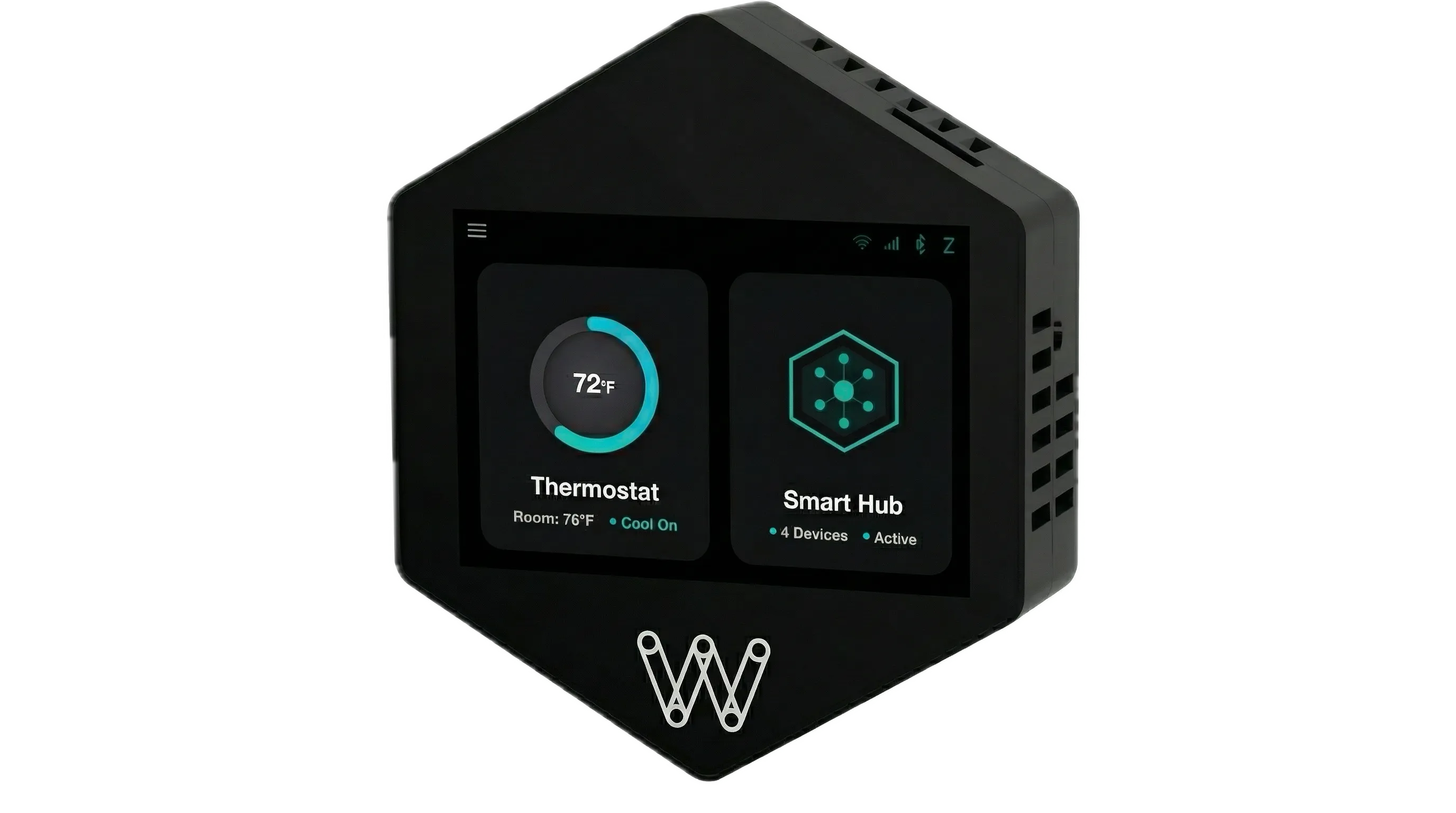

WalTech Vision 2.0 is the best smart WiFi RV thermostat to replace your Dometic. Works with single-zone 3-wire, CCC multi-zone, and Duo-Therm systems. No electrician. No dealer.
CCC communication failures, zones dropping off, flashing error codes. You restart it, it works for a day, then it's back to the same mess.
Temperature 8-10 degrees off
Your Dometic says 72 but the RV feels like 80. The AC runs nonstop or barely kicks on. You can't trust the reading.
Buttons stop responding
Capacitive buttons wear out. You're mashing the Mode button 10 times just to switch from Cool to Heat. Some buttons just stop working entirely.
Zero remote access or smart features
No app. No alerts. No way to check on your RV from your phone. If the AC dies while you're away, you won't know until it's too late.
Find Your Dometic Thermostat
Which Dometic do you have?
Dometic made several models over the years. Look at the pictures below and find yours.
Dometic Single-Zone 3-Wire
WalTech Compatible
The most common Dometic thermostat on the road. Uses 3 simple wires behind the wall: power (+12V), ground, and one signal wire. Comes in round and square shapes, black or white.

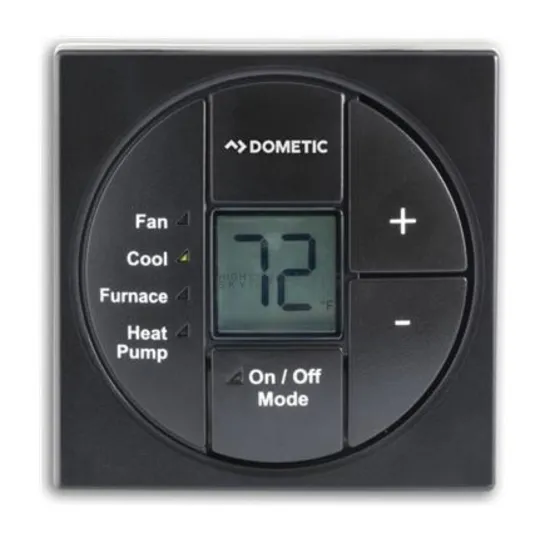

Round (Black)

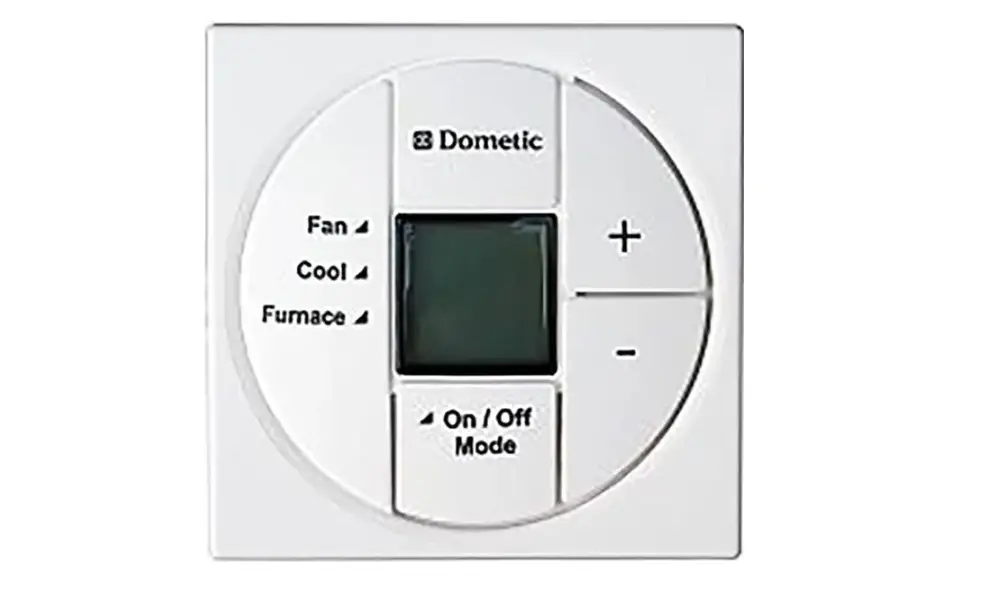

Round (White)

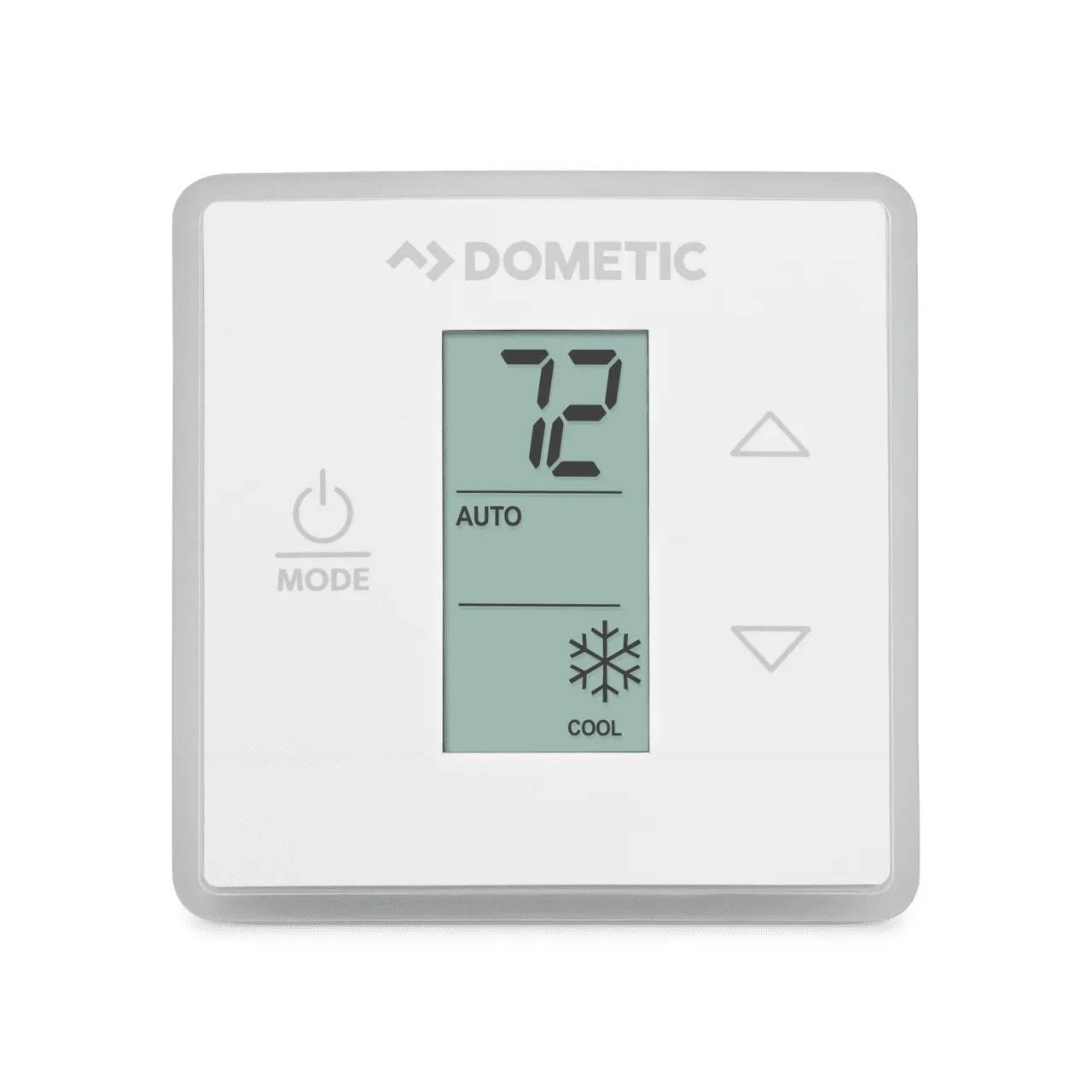

Square (White)
Other Variant
Installation - about 15 minutes
Turn off the breaker
Remove old Dometic from the wall - you'll see 3 wires: power, ground, and signal
Mount WalTech using the included template and screws
Push wires into WalTech: Pin 7 = Power, Pin 8 = Ground, Pin 11 = Signal
Connect the included jumper wire from Pin 8 to Pin 16 (safety ground)
Power on, select your Dometic system type, and you're done
Dometic CCC Multi-Zone (10 or 12 Button)
Easiest InstallWalTech Compatible
The Dometic Comfort Control Center. Wide horizontal panel with a blue round LCD, found in Class A motorhomes and fifth wheels. This is the easiest Dometic to replace - it uses a single telephone-style RJ11 cable. Unplug it from the old one, plug it into WalTech. Done.

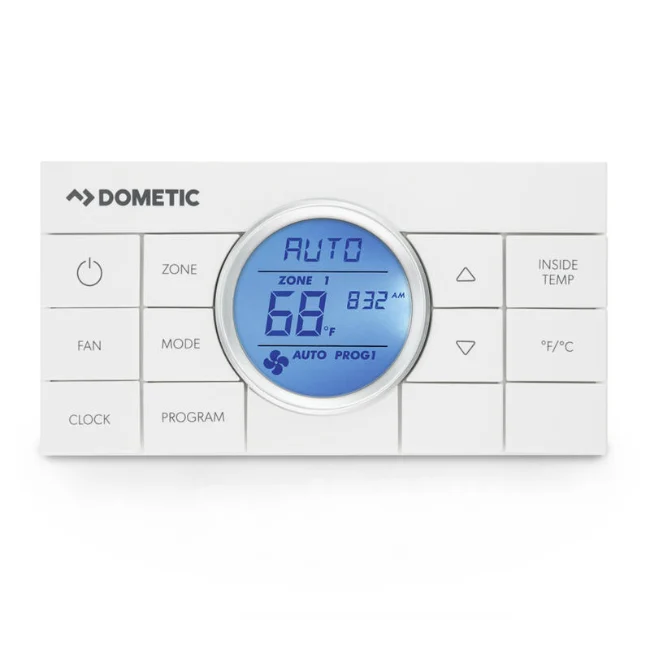

CCC 10/12 (White)

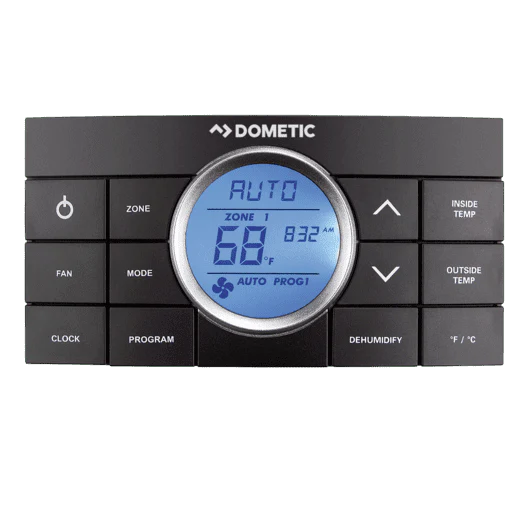

CCC 10/12 (Black)
Installation - about 5 minutes
Turn off the breaker
Remove old CCC panel - unplug the RJ11 telephone cable from the back
Mount WalTech, plug that same RJ11 cable into the port on the back of WalTech
Power on, select "Dometic CCC 10/12 button multizone," and you're done
WalTech auto-detects your zones. It talks to each zone controller and activates everything automatically.
The older Duo-Therm Comfort Control. Tall, vertical, white panel with 5 buttons: Fan, Mode, Up, Down, and Zone. Has an On/Off switch at the bottom. Same simple install - it also uses an RJ11 telephone cable behind it. Just unplug and plug into WalTech.
CCC 5-Button
Installation - about 5 minutes
Turn off the breaker
Remove old panel - unplug the RJ11 telephone cable from the back
Mount WalTech, plug that same RJ11 cable into WalTech's back port
Power on, select "Dometic 5 button CCC multizone," and you're done
5 buttons, not 4. Count the buttons. If yours has Fan, Mode, Up, Down, and a Zone button - that's the compatible 5-button model. If there's no Zone button (only 4 buttons), that model is not compatible.
Dometic Models NOT Compatible with WalTech
4-Button
R-32
R-32 Models

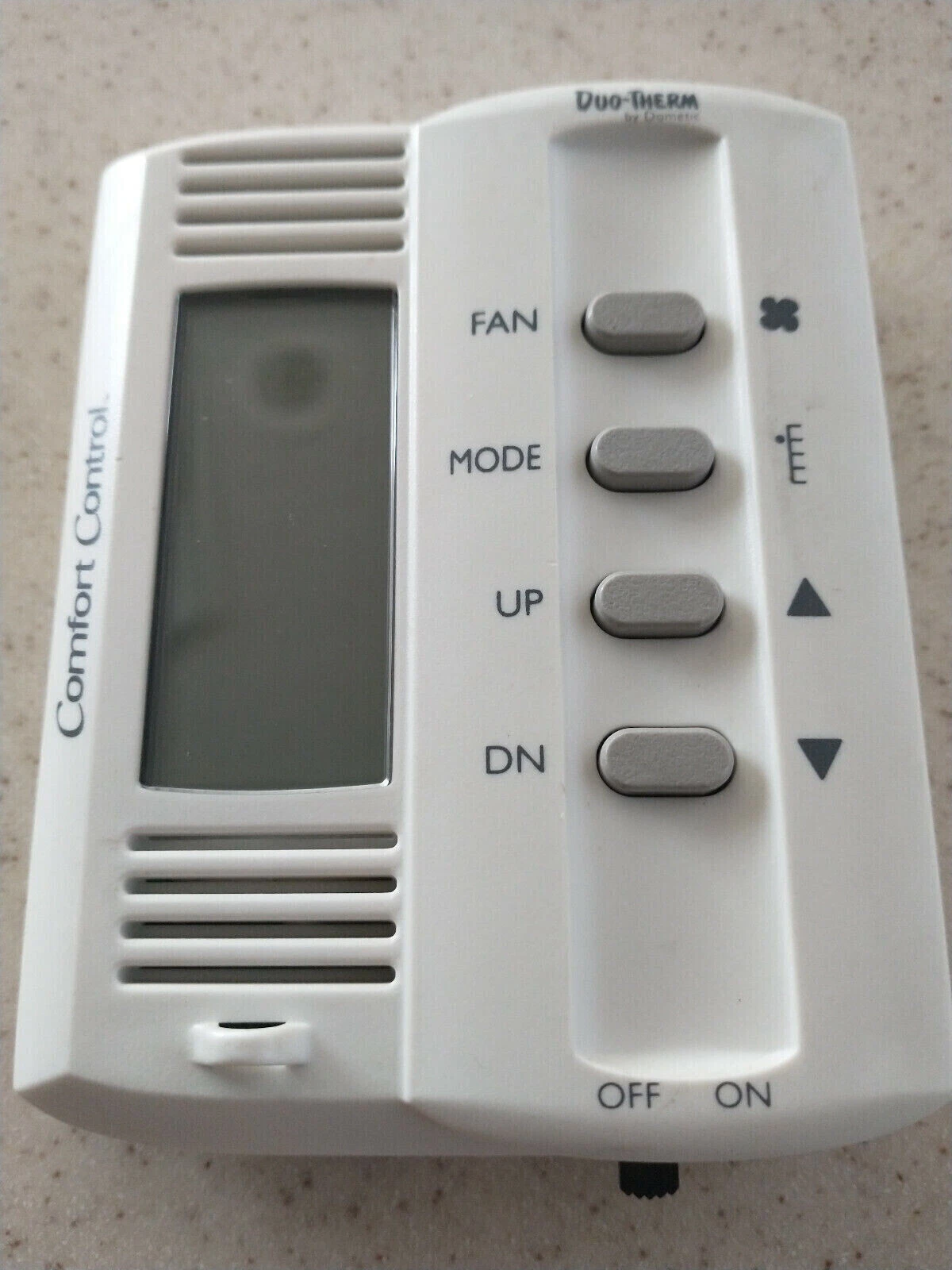

Dometic 4-Button Comfort Control
Looks like the 5-button but missing the Zone button. Only has Fan, Mode, Up, Down. Uses a different protocol.
Newer Dometic R-32 Refrigerant Models
The RV industry recently switched to R-32 refrigerant. Newer Dometic thermostats use a different signal format. WalTech is actively working on R-32 support - coming soon.
Not sure which one you have? Text us a photo at 1-844-WALTECH and we'll tell you in seconds.
More Than a Thermostat
Your Dometic never did this.
WalTech AI Assistant
Built right into WalTech. Ask WalTech AI anything - "set my bedroom to 68," "what's the temperature in Zone 2," or "turn on the fan." It understands plain English. No manual needed.
WalTech Smart Hub
WalTech doubles as a smart hub for your RV. Connect Mopeka tank sensors, smart plugs, smart relays, and temperature/humidity sensors. Monitor everything from one screen or the app.
Pet Safety Alerts
Set temperature and humidity thresholds. If your RV gets too hot or too cold, WalTech sends you a push notification instantly - even over cellular when there's no WiFi.
Control from Anywhere
Built-in cellular (AT&T, T-Mobile, Verizon) + dual-band WiFi. Control your RV climate from the grocery store, from work, or from across the country.
Built-in GPS
Know where your RV is at all times. GPS coordinates show right in the app. Great for peace of mind when your rig is in storage or someone else is driving it.
3.5-inch Color Touch Screen
No more tiny LCDs or unresponsive buttons. Full color Android touch screen. See your temperature, zones, sensors, schedules - all on one beautiful display.
Side by Side
Dometic vs. WalTech Vision 2.0
Dometic
WalTech Vision 2.0
Display
Small LCD / no display
3.5" color touch screen
Temperature accuracy
8-10°F off
Within 1°F + calibration
Remote control
App + cellular + WiFi
Built-in cellular
AT&T / T-Mobile / Verizon
AI assistant
WalTech AI built-in
Smart Hub / sensors
Tank, plugs, relays, H&T
Pet safety alerts
Multi-zone
CCC panel only
Built-in, up to 4 zones
Scheduling
7-day, 4 slots per day
GPS tracking
HVAC cost tracking
Software updates
Buy new unit
Over-the-air updates
Not sure which Dometic you have?
Snap a photo of your thermostat and text it to us. We'll identify it and confirm compatibility in seconds.
Yes. WalTech replaces Dometic single-zone 3-wire thermostats, Dometic CCC 10/12 button multi-zone, and the older Dometic 5-button Duo-Therm Comfort Control. The only exceptions are the 4-button model and newer R-32 refrigerant models.
How long does it take to replace a Dometic thermostat?
About 15 minutes for a Dometic single-zone 3-wire. For Dometic CCC multi-zone systems (both 10/12 button and 5-button), it can be as fast as 5 minutes - you just unplug the RJ11 telephone cable and plug it into WalTech.
Do I need an electrician to install WalTech?
No. WalTech is designed for DIY installation by anyone. Dometic single-zone has just 3 wires, and CCC multi-zone is a single plug. If you can use a screwdriver, you can install WalTech. And if you get stuck, text us at 1-844-WALTECH and we'll walk you through it.
Why is my Dometic thermostat reading the wrong temperature?
Dometic thermostats are known to read 8-10 degrees off due to their sensor design. WalTech uses a precision temperature sensor accurate to within 1 degree. Plus, WalTech has a calibration feature in Settings so you can fine-tune the reading to match exactly how your space feels.
What's the difference between a Dometic 4-button and 5-button thermostat?
Count the buttons. The 5-button model has Fan, Mode, Up, Down, and Zone. The 4-button model only has Fan, Mode, Up, and Down - no Zone button. WalTech is compatible with the 5-button version only. The 4-button model uses a different communication protocol.
What does "Dometic 3-wire" mean?
Dometic single-zone thermostats use 3 wires behind the wall: one for +12V power, one for ground, and one signal wire that handles all communication with the HVAC controller. That single signal wire is how the thermostat tells the AC, heat pump, fan, and furnace what to do. WalTech connects to these same 3 wires.
What is Dometic CCC and what does the RJ11 cable look like?
CCC stands for "Comfort Control Center" - Dometic's multi-zone thermostat system. Behind the CCC panel, there's a single cable that looks exactly like a telephone cord (called an RJ11 jack). To replace it with WalTech, you literally unplug that cable from the old Dometic and plug it into the port on the back of WalTech. That's the entire installation for CCC systems.
Will WalTech work with my Dometic heat pump?
Yes. During setup, WalTech asks you to select your Dometic system type. If you have an AC with a heat pump and furnace, select "Dometic (Heat Pump + Furnace)." WalTech will use the heat pump as Stage 1 heating and the furnace as backup Stage 2 - which is more energy efficient.
What are the Dometic thermostat error codes E1, E2, E3, E4, E6?
WalTech handles all of these - it communicates directly with your HVAC controller and shows clear status on a touch screen instead of cryptic error codes.
Is WalTech compatible with R-32 refrigerant Dometic systems?
Not yet. The RV industry recently transitioned to R-32 refrigerant, and the newer Dometic thermostats designed for R-32 use a different signal format. WalTech is actively developing R-32 compatibility and will support these systems soon. If you're unsure whether your Dometic is an R-32 model, text us a photo at 1-844-WALTECH and we'll check for you.
Will WalTech detect all my zones automatically?
Yes. Once connected, WalTech automatically talks to each zone controller asking for its temperature. If a zone responds, WalTech activates it. If a zone doesn't respond, it's treated as inactive. You don't have to configure zones manually.
Why do my zones show slightly different temperatures?
That's normal. Sensors are in different parts of the RV - some near windows, some in ductwork. Airflow varies between zones. Give WalTech about an hour to stabilize. If Zone 1 still seems off, go to Settings > Calibration and adjust it to match how the space feels.
What is WalTech AI and how does it help with my Dometic replacement?
WalTech AI is our built-in AI assistant. Instead of reading a manual or pressing buttons, you can just tell WalTech AI what you need - "cool my RV to 70," "what's Zone 2 temperature," or "set a schedule for tomorrow." WalTech AI handles it. It's like having a smart home assistant built right into your thermostat.
What is the WalTech Smart Hub?
WalTech isn't just a thermostat - it's a smart hub for your entire RV. It connects to Mopeka propane tank sensors, Shelly smart plugs and relays, temperature and humidity sensors, and more. Monitor and control everything from the WalTech touch screen or the mobile app. Your old Dometic could never do this.
Can I monitor my RV remotely after replacing my Dometic?
Yes - that's one of the biggest upgrades. WalTech has built-in cellular (auto-connects to AT&T, T-Mobile, or Verizon) plus dual-band WiFi. You can check the temperature, change settings, and get pet safety alerts from anywhere using the WalTech mobile app. Even if there's no WiFi at the campground, cellular keeps you connected.
My Dometic 5-button heating isn't working on Zone 1. What's wrong?
Some older Dometic 5-button systems were built without a dedicated Zone 1 thermistor - the old thermostat itself acted as the sensor. WalTech needs an external thermistor at the Zone 1 control box for heating to work. Text us at 1-844-WALTECH and we'll ship you the correct thermistor - it plugs right in, no tools needed.
Ready to replace your Dometic?
Touch screen. Built-in cellular. WalTech AI. Smart Hub. Pet safety. Everything your Dometic should have been - installed in 15 minutes.
